OBS UDP Setup

Shared guide index: lang.md

Follow these steps to stream your cropped FOV from the main PC to the secondary PC via UDP.

Step 1: Configure FFmpeg URL

Path: Settings -> Output -> Recording

OBS Output Mode

Set:

  1. Output Mode to Advanced.
  2. Type to Custom Output (FFmpeg).
  3. FFmpeg Output Type to Output to URL.
  4. File path or URL to:
udp://<sec PC IP>:<port>

Example:

udp://192.168.0.1:1234

Notes:

  • <sec PC IP> is the IPv4 address of your secondary PC.
  • <port> is any unused port you choose, and a 4-digit port is recommended (for example 1234, 2345).

Step 2: Container and Encoding Settings

Use:

  1. Container Format: mjpeg (Video)
  2. Container Format Description: MIME multipart JPEG
  3. Keyframe interval (frames): 0

Other fields can stay at defaults initially.

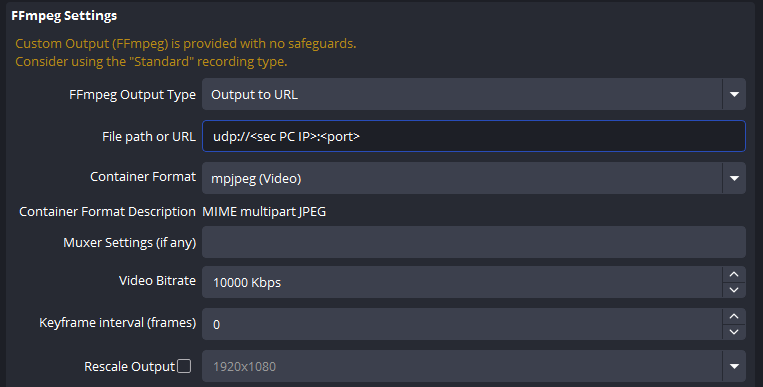

OBS FFmpeg Settings

Step 3: Set Resolution and FPS (FOV size)

Path: Settings -> Video

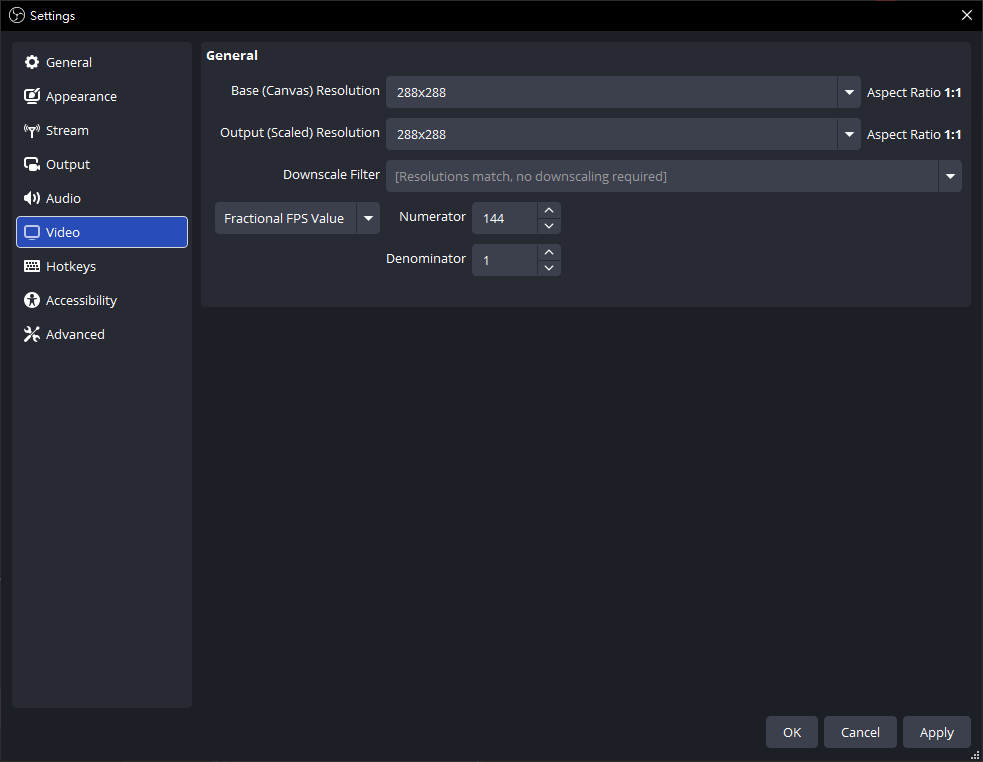

OBS Resolution Settings

Set:

  1. Base (Canvas) Resolution to your FOV value corresponding resolution. For example, when FOV is 128, set it to 128x128.
  2. Output (Scaled) Resolution to your FOV value corresponding resolution. For example, when FOV is 128, set it to 128x128.
  3. FPS higher than 144.

Recommended FPS values: 160 / 165 / 180 / 240 (based on GPU performance).

Important: Both Base (Canvas) Resolution and Output (Scaled) Resolution should be set to the resolution corresponding to your FOV value (e.g., when FOV = 128, set to 128x128).

Note: The table below shows the format of the FOV-size table. In the FOV-size table, Base Resolution corresponds to your desktop/game resolution, and Cropped Resolution is used to fill the OBS Filter Crop/Pad (see Step 4).

Example (FOV = 128, corresponding to FOV-size table):

FOV Base Resolution Cropped Resolution
128 1920x1080 896x476

Step 4: Apply Crop/Pad Filter

To send only the FOV region:

  1. Select your Game Capture or Display Capture source in OBS.
  2. Click Filters.
  3. Add Crop/Pad.
  4. Fill crop values (Left/Top/Right/Bottom) according to your FOV-size table:
  5. The Cropped Resolution in the FOV-size table is used to fill the OBS Filter Crop/Pad values.
  6. Left and Right correspond to the first value (width) in the Cropped Resolution column of the FOV-size table.
  7. Top and Bottom correspond to the second value (height) in the Cropped Resolution column of the FOV-size table.

Example (FOV = 128, Desktop/Game Resolution = 1920x1080):

According to the FOV-size table, when desktop/game resolution is 1920x1080 and FOV is 128, Cropped Resolution is 896x476. This 896x476 is used to fill the OBS Filter Crop/Pad: - Left = 896 - Top = 476 - Right = 896 - Bottom = 476

Note: - In the FOV-size table, find the table that matches your desktop or game resolution (e.g., 1920x1080). - Then select your desired FOV value (e.g., 128). - The corresponding Cropped Resolution (e.g., 896x476) is the value used to fill the OBS Filter Crop/Pad.

This prevents oversized frames and reduces UDP drop risk.

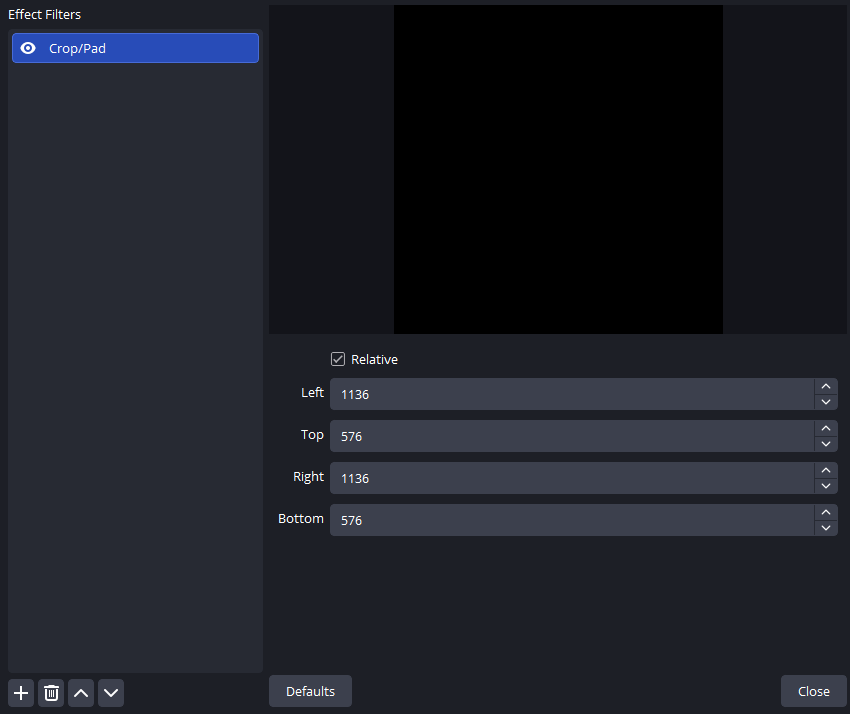

OBS Crop Filter

Step 5: Start Recording (Start UDP stream)

When everything is set correctly, click Start Recording.

OBS will begin sending the UDP stream from the main PC to the secondary PC.

OBS Start Recording

Secondary PC Setup

Use the exact same IP and port values used in OBS.

Example:

  1. OBS output URL:
udp://192.168.0.1:1234
  1. Secondary PC input:
  2. IP: 192.168.0.1
  3. Port: 1234

If any value does not match exactly, the stream will not be received.

How to Find Secondary PC IP

  1. Press Win + R, type cmd, and press Enter.
  2. Run:
ipconfig
  1. Find IPv4 Address under your active adapter.

Why frame queue is empty appears

Common causes:

  1. Main PC and secondary PC are not connected on network.
  2. OBS recording was not started.
  3. IP or port is incorrect in UI.
  4. OBS output/filter/encoder settings are wrong.

Check connectivity both directions:

ping <secondary PC IP>
ping <main PC IP>

Extra Note for UDP Users

UDP still requires Crop/Pad. Without cropping, frame size can be too large for stable transport, causing empty queues or dropped frames.

Gray screen with frequent error: Corrupt JPEG data: premature end of data segment

Cause: FPS is too high and decoder cannot keep up.

Fix:

  1. Lower OBS FPS.
  2. Prioritize stable decode first, then increase FPS gradually.

FOV Size Reference

See: FOV-size.md
